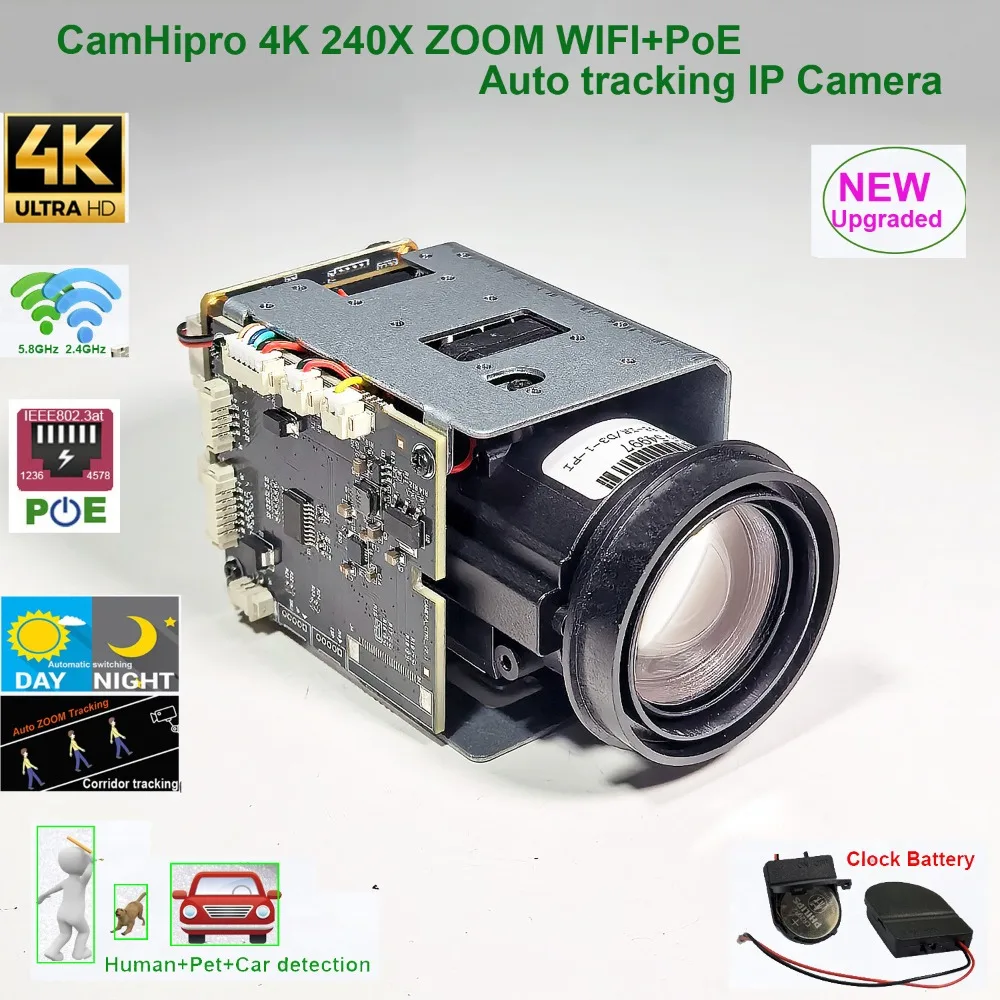

4K Auto Tracking Security Camera – 240X Zoom, WiFi 2.4/5.8GHz, PoE, Human+Pet+Car Recognition, Mobile App
4K Auto Tracking Security Camera – 240X Zoom, WiFi 2.4/5.8GHz, PoE, Human+Pet+Car Recognition, Mobile App
SPECIFICATIONS
Backlight compensation: support

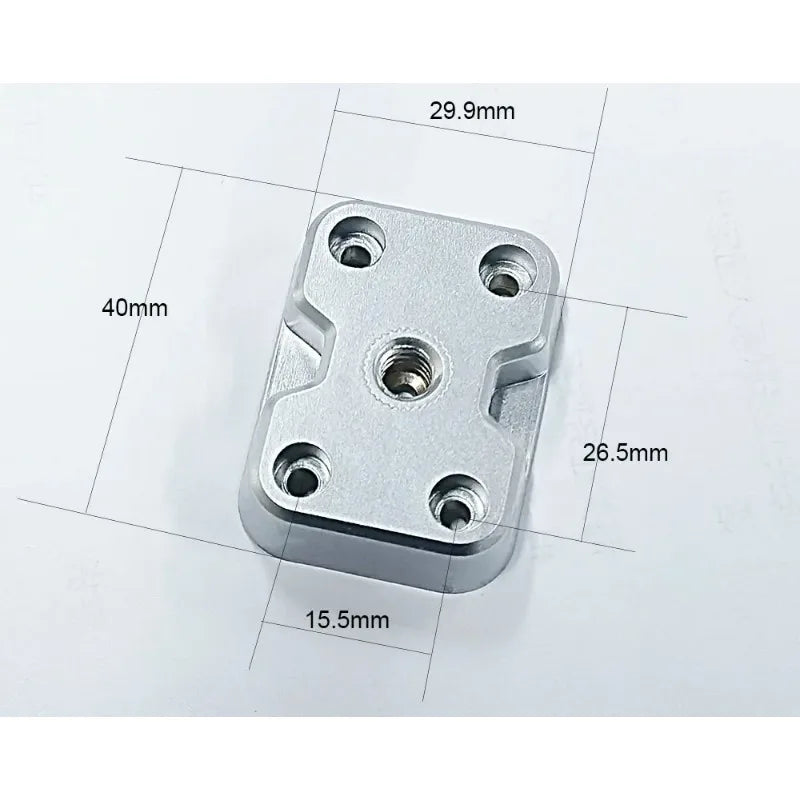

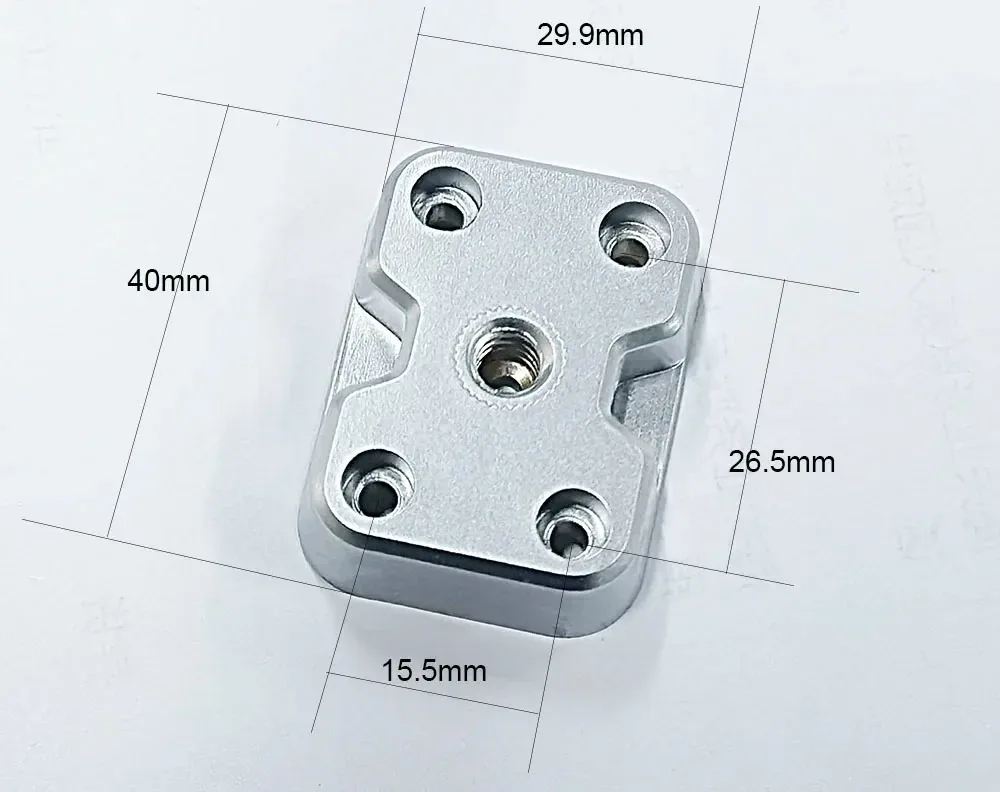

Bracket type: fixed screw
Brand Name: NONE
Camera sensor size: 1/2.8
High-concerned chemical: None
Origin: Mainland China
Power supply method: External power supply
Specifications: JH45-S-W-240X
Waterproof grade: Not waterproof.
aperture: F1.8
horizontal definition: 8MP/4K
lens: 4.7-94mm
material: All metal glass
operating temperature: -35~60℃
type: IP camera
usage environment: indoor
voice type: Support two-way voice intercom
voltage: 12
weight: 0.6
zoom zoom: Digital + Optical
4K Auto Tracking Camera – 240X Zoom, WiFi+PoE, Smart Detection

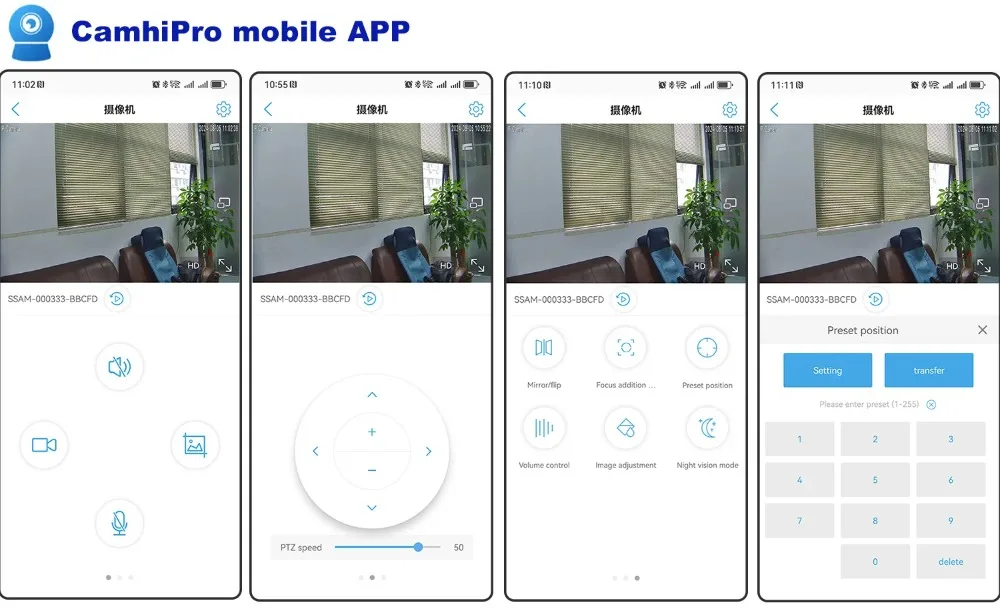

Capture every detail with this 4K PTZ camera featuring 240X hybrid zoom and intelligent auto tracking. Detects humans, pets, and vehicles – send alerts via email or FTP, record to SD card, or upload to server. Connect via WiFi (2.4G/5.8G) or PoE for single‑cable convenience. Remote control via the CamHiPro app with PTZ, preset positions, and night vision. Perfect for home, office, or commercial surveillance.
Key highlights:
-
4K Ultra HD – sharp, detailed footage
-
240X hybrid zoom – see faraway details
-

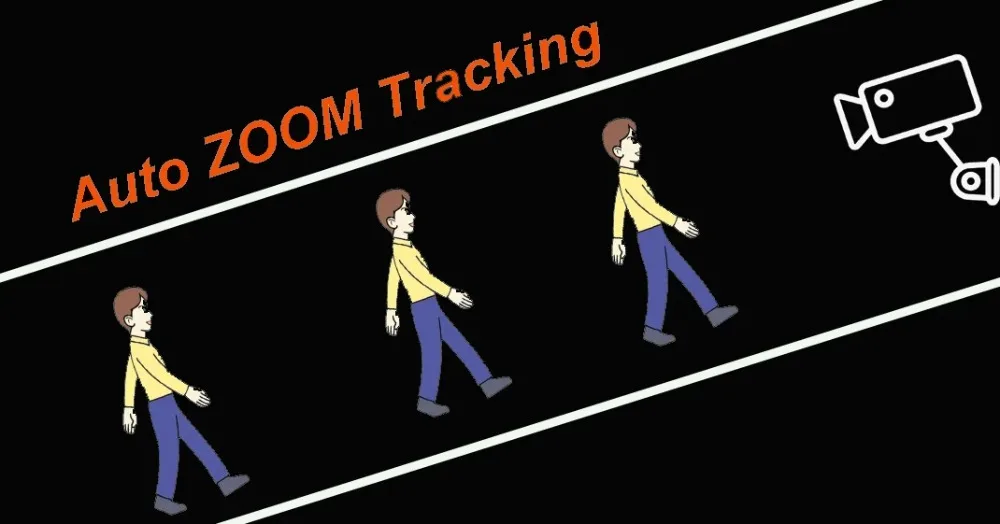

Auto tracking – follows moving subjects
-
Human + Pet + Car detection – smart alerts
-
Dual‑band WiFi 2.4G/5.8G – flexible connection
-
PoE support – power + data over one cable
-
AP hotspot mode – direct connection without router
-
SD card storage – local recording
-
Email & FTP alerts – instant notifications
-
Night vision – 24/7 protection
Perfect for:
-
Home and office security
-
Retail and commercial surveillance
-
Pet and property monitoring
Note: Requires SD card for local recording (not included). PoE requires 802.3at switch/injector.
4K 8MP network camera adopts highly integrated MSTAR338Q + IMX415 processor, with extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality and effectively reduce internet bandwidth occupation; powerful network functions, supports standard onvif protocol, supports RTSP, supports alarm picture upload to FTP server, alarm picture to email, supports mobile phone remote monitoring;
4K 8MP IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard onvif protocol, and support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;

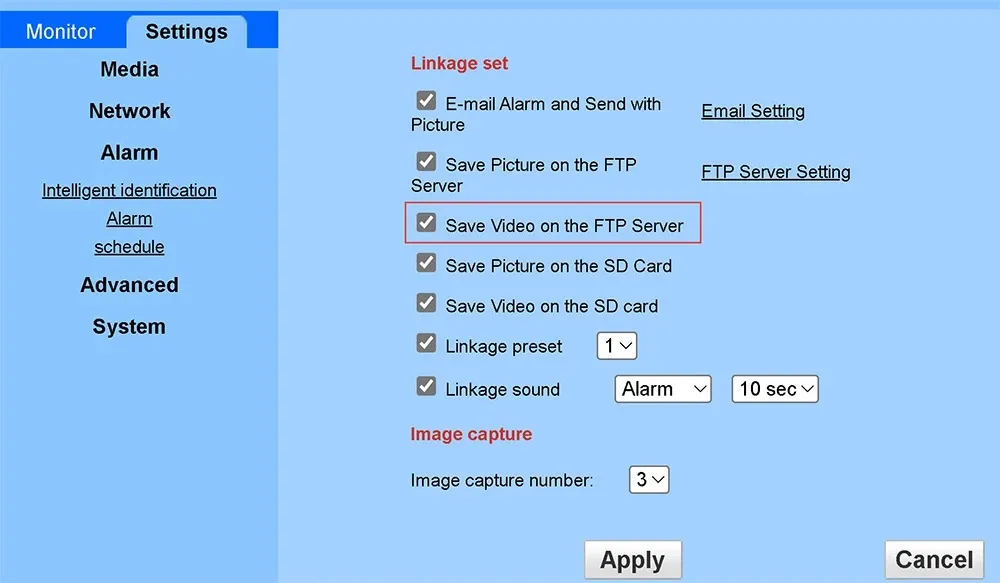

Support for uploading alarm images and videos to FTP servers
Support alarm image and video upload to FTP server
Support Chinese, English, French, German, Italian, Spanish, Korean, Polish, Russian
High sensitivity, high signal-to-noise ratio CMOS image sensor
Adopt MSTAR338Q processing chip + Sony IMX415 CMOS
The highest pixel can reach 8MP, the highest resolution can reach 8MP (3840 * 2160)
240X zoom (30x optical zoom and 8x digital zoom)
H.265 compression algorithm, effectively reduce internet bandwidth, support dual streaming, support mobile phone monitoring

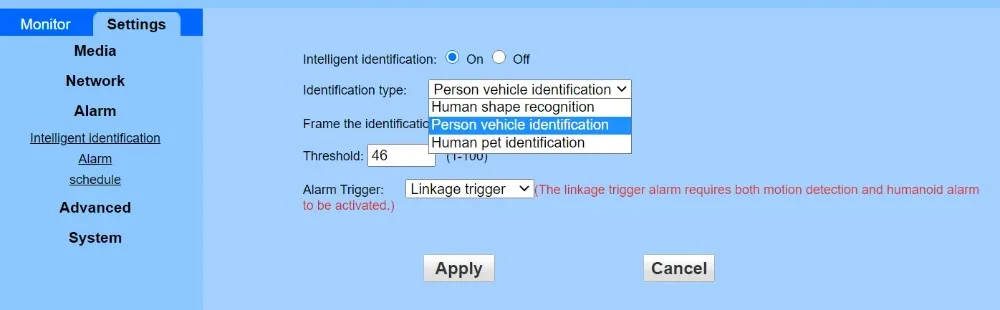

Support humanoid recognition trigger SD card recording, SD card capture, voice alarm, push notification, email alarm and other functions.
Support humanoid recognition, support car shape recognition records, alarm
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
Support ONVIF protocol,
Supports manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending email
Support uploading alarm pictures and videos to FTP server
Support alarm sound output
Support for capturing photos to an FTP server at regular intervals
Supports static IP and dynamic IP (DHCP)
Support P2P plug and play
Supports IE, Google, Firefox
Supports up to 6 users browsing simultaneously (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping
Support Micro SD card function, up to 256GB Micro SD card
Support PC client side download SD card video
Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia

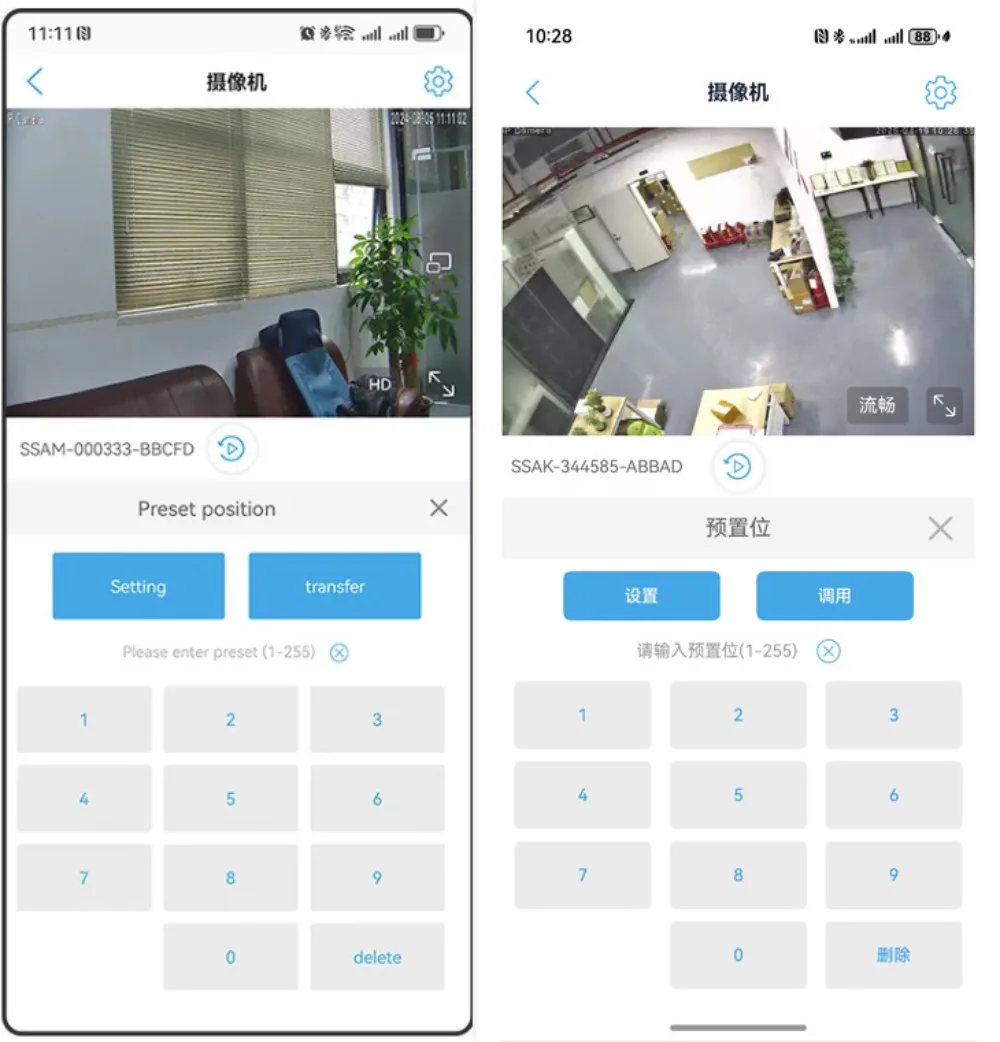

Enter 249 in the preset input field, and then click the "Settings" button to enable corridor tracking mode

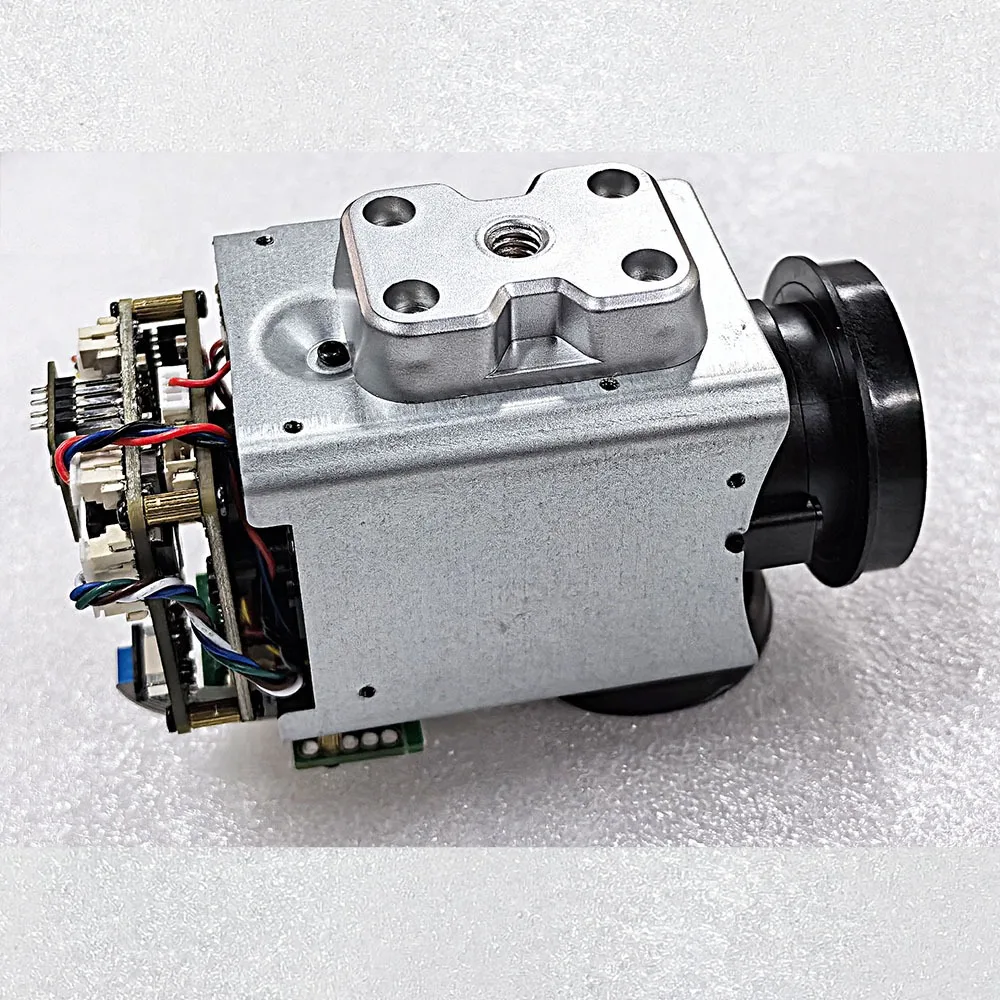

Remarks: This movement supports VISCA protocol (connected to Speed dome PTZ camera) and PTZ
serial port protocol (connected to PTZ). The default is VISCA protocol.

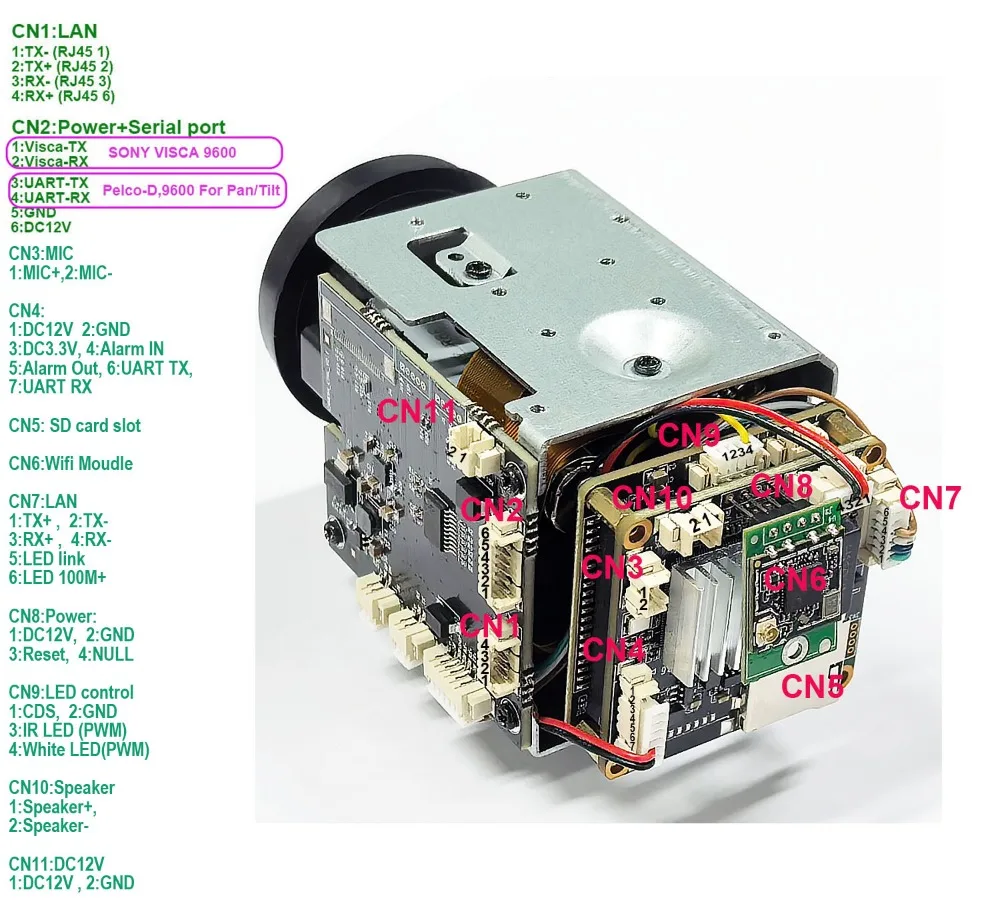

Interface definition:
Command and Instructions:
1.The lens curve learning command: 253 + set + 252 +call
(The distance between the camera and the object must be greater than 50meters)
2.Minimum focus distance setting:Set command: 251 + set + X + call.
When X = 1, the minimum focusing distance is about 1.5 meters;
when X = 2, the minimum focusing distance is about 3 meters;
when X = 3, the minimum focusing distance is about 6 meters;
when X = 4, the focusing distance is infinity.Default X = 2
3. Focus mode setting:Set command: 250 + set + X + call.
When X = 1, the focus will only be triggered when the zoom movement is triggered;
when X = 2, any change in the pan, tilt, left, right, and zoom modes will trigger the movement to focus;
when X = 3, the automatic focusing mode, In any case, the movement will automatically focus. Default X = 2
4. Modification Digital ZOOM:
If ip address of camera is 192.168.188, Please open the browser and enter this address:
http://192.168.1.88/cgi-bin/hi3510/param.cgi?cmd=setmaxezoom&-maxezoom=10
10X Digital zoom when maxezoom=10; digital zoom close when maxezoom=1
Maxezoom value can be equal to any value from 1-10, representing the multiplier digital zoom of the number.
After the command is executed, please power off andrestart the camera. digital zoom to take effect
5.ZOOM OSD display and not display: 225 + call + X + call,
when X = 1, the ZOOM timesdisplay is on;
when X = 2, the zoom timesdisplay is off, the default X =1
6.Modify the control protocol method (you need to restart the movement to take effect after modification):
254+set+1+set: VISCA protocol (default) (PELCO-D, baud rate: 9600, address code: 1/255)
254+set+2+set: PTZ serial port protocol (PELCO-D, baud rate: 9600, address: 1
7. The movement supports the standard Visca protocol with a baud rate of 9600.
The address codes of the dome camera is 1
Humanoid recognition algorithm based on deep learning.Based on Huawei's deep learning humanoid recognition algorithm V2.0,
itprovides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.

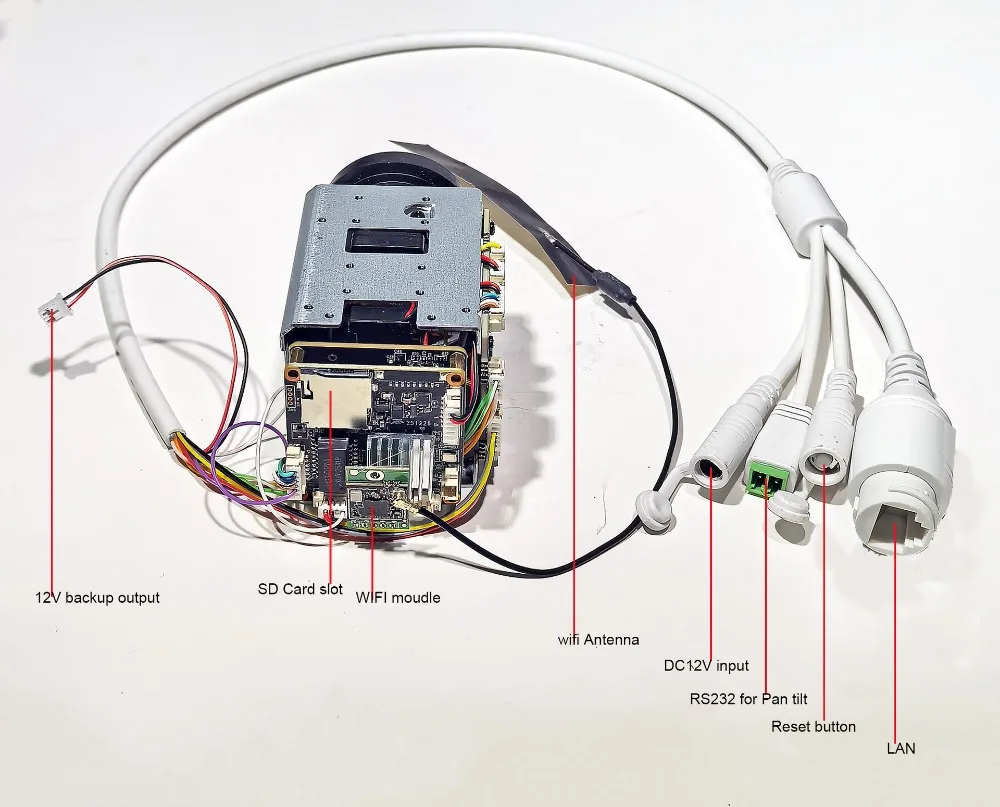

1X 240x zoom 4K 8MP wireless IP CAMERA
1x cable
1X wifi antenna
1X DC12V 1A power adapter
Compatibility Notice:
-
Power: Supports PoE (IEEE 802.3at) or DC 12V. If using PoE, ensure your switch/injector supports 802.3at (not 802.3af).
-

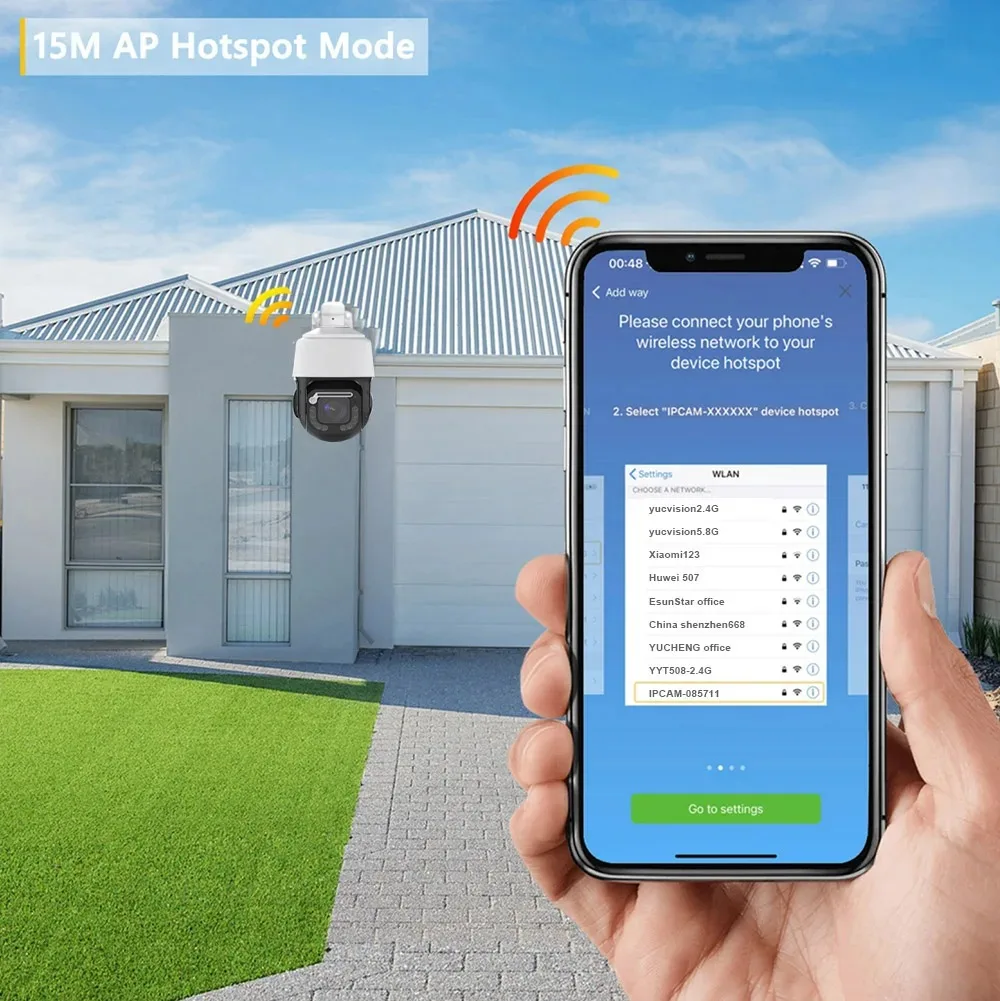

WiFi: 2.4GHz and 5.8GHz bands supported. For AP hotspot mode, connect your phone to the camera's "IPCAM‑XXXXXX" network.
-
SD Card: Supports FAT32 format. Recommended Class 10 for 4K recording.
-
Mobile App: Requires iOS/Android device running the CamHiPro app.
-
PTZ protocols: Pelco‑D (9600 baud) and Sony VISCA (9600 baud) supported. Other protocols may not work.
-
Network: Requires router with available LAN port for PoE or WiFi connection. Internet access required for remote viewing.
-
Storage: SD card not included.
No SD card, no PoE injector/switch included
